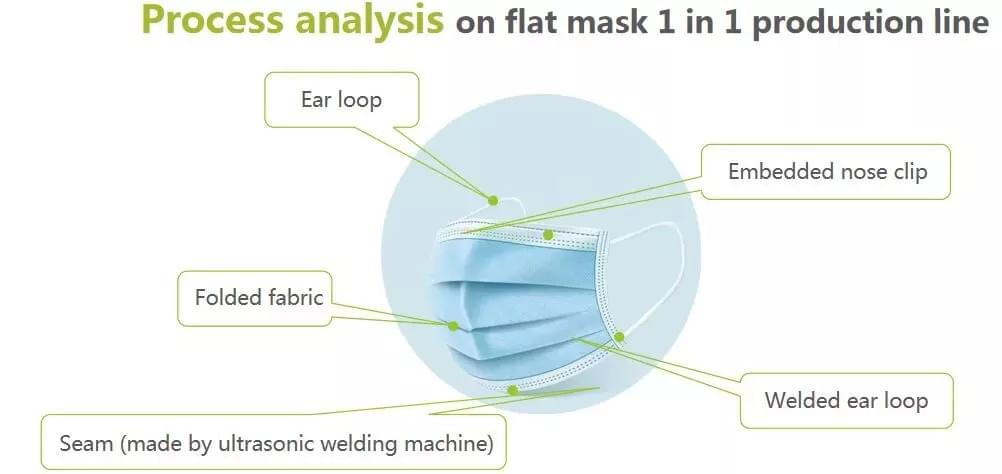

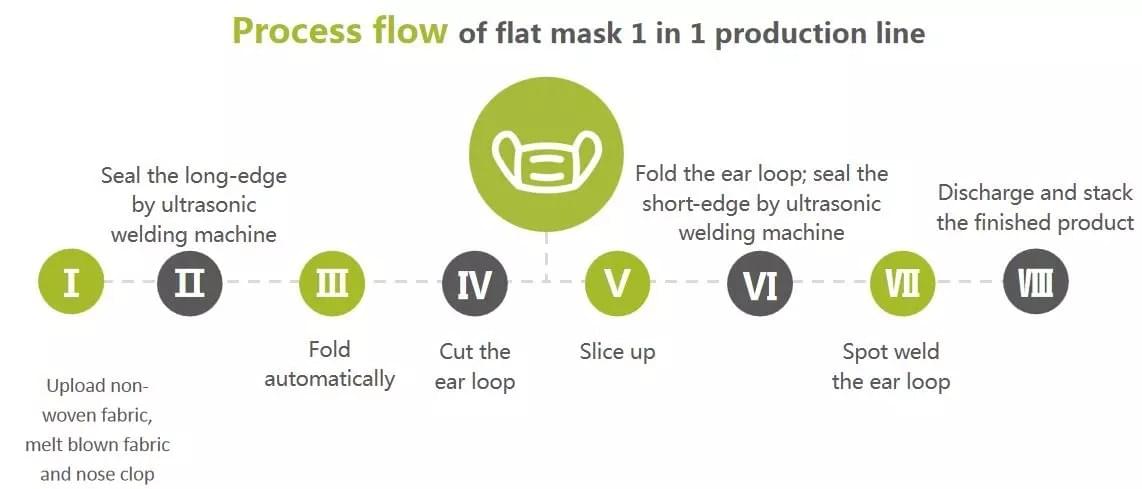

Process flow of flat mask 1 in 1 production line

This mask machine is an all-in-one machine of automatic three-dimensional folding mask. From the feeding of cloth to the completion of automation of finished products, including (upper bridge strip, printing), spot welding of elastic belt, folding, forming, welding and cutting of finished products, waste removal, and finished product output, the automatic production on a machine is fully realized.

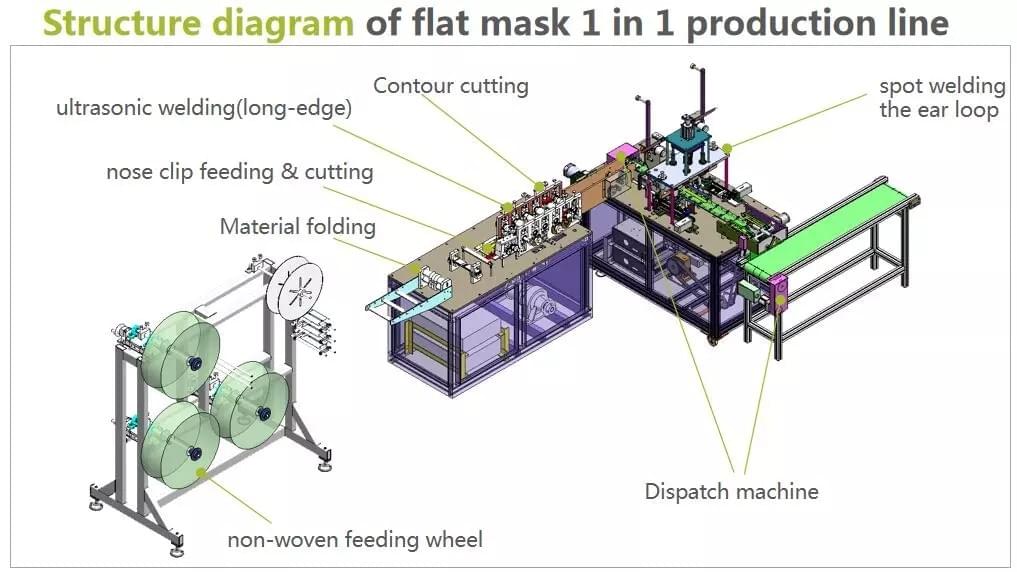

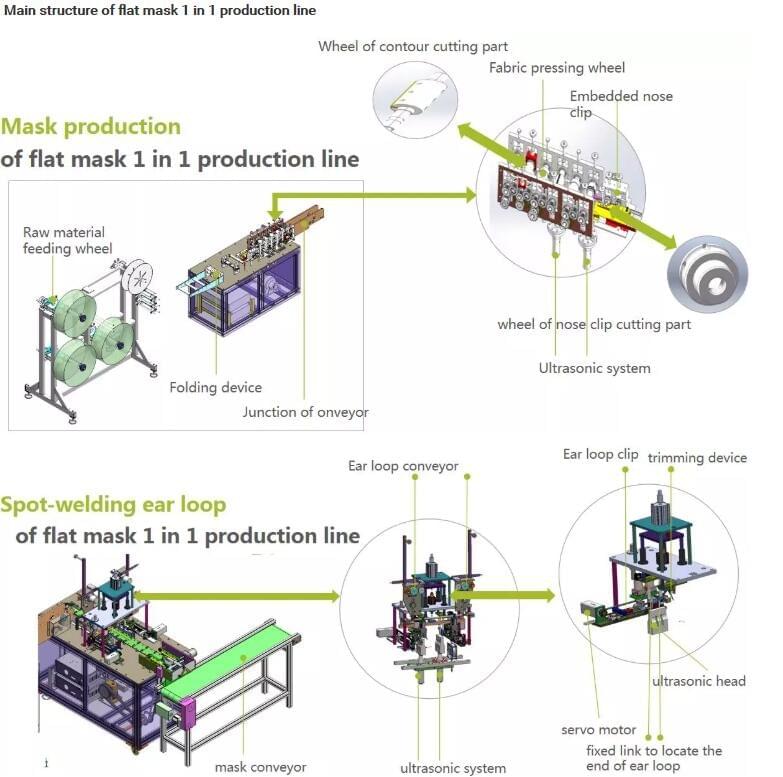

3-ply Face Mask Panel Making Machine.This machine is composed of one set of feeding machine,one set of planar face panel making machine. When you loaded your 3 rolls of non-woven fabric,the entire roll of fabric will automatically unrolled and at the same time,the fabric automatically folded and wrapped.Nose bridge rolls unrolled by traction.Cut and import into the hemmed fabric,both sides are welded to seal by ultrasonic welding,and then through the ultrasonic side seal.It is cut and shaped by a cutter.

1. Automatic fabric tension and tension balance control.

2. The whole structure of our Disposable Facial Mask Machine is made of aluminum profile to guarantee the machine in stable,anti-rust,strong,light weight features.

3. The Surgical,Medical Mask Making Machine which is controlled by PLC and Driven by Servo Motor.

4. By change the toolings on machine which can realize the different kinds of disposable mask making.

5. Our machine is applicable for 1-4 layers of protective mask making based on your requirement.

6. The fabric feeding level length is 1200mm .

7. Adjustable parts: Mask Folding Size & Ultrasonic Welding Part .

8. Automatic Work Procedure: Fabric Feeding-Nose Bride Feeding- Nose Bridge Cutting-Nose Bridge Folding and Welding-
Mask Length Welding-Edge Folding-Mask Width Welding-Mask Forming-Mask Cutting.

Temp: indoor temperature1. Humidity:40-80%, non-condensation, with dehumidifier; Power supply: 220V/50Hz2. Power supply, fluctuation within±5%；power grid grounding wire meets international requirement. Electronic automatic voltage stabilization and current stabilization devices should be installed in area where the voltage amplitude is more than 5%.3. There shall be no strong electromagnetic signal interference nearby, and avoid any radio stations (or relay stations) around the installation site4. Grounding amplitude: ＜50um； Vibration acceleration: ＜0.05g。5. Get rid of punching machine and other device. 6. no smoke or dust (avoid some specific work such as metal polishing)7. Air pressure：≥0.6mpa。8. Some times, there should be anti-static floor, to enhance shielding。
