CNC Vertical Machining Center Manufacturers Products In The Maintenance Procedures Must Follow The Principle
When using a vertical machining center, in order to prevent accidents or damage to the machine tool, the following principles must be observed during maintenance:
1. When a fault occurs, press the emergency stop button on the operation panel to stop the machine.
2. Before repairing or replacing components, you must first turn off the power and lock the switch in a key position with a padlock.
3. The instrument during calibration must be calibrated.
4. Regularly check the cables and wires for damage to prevent leakage or electric shock.
General vertical machine center
General vertical machining center, mainly used in medium-sized parts and molds, the workpiece in a fixture may be for the completion of milling drilling boring, reaming and other processes of processing, it can be single used and can also be used for multiple operations on parts in a production line. Cutting with powerful, high-speed positioning. mechanical and electrical integration, automatic chip control and security protection features.

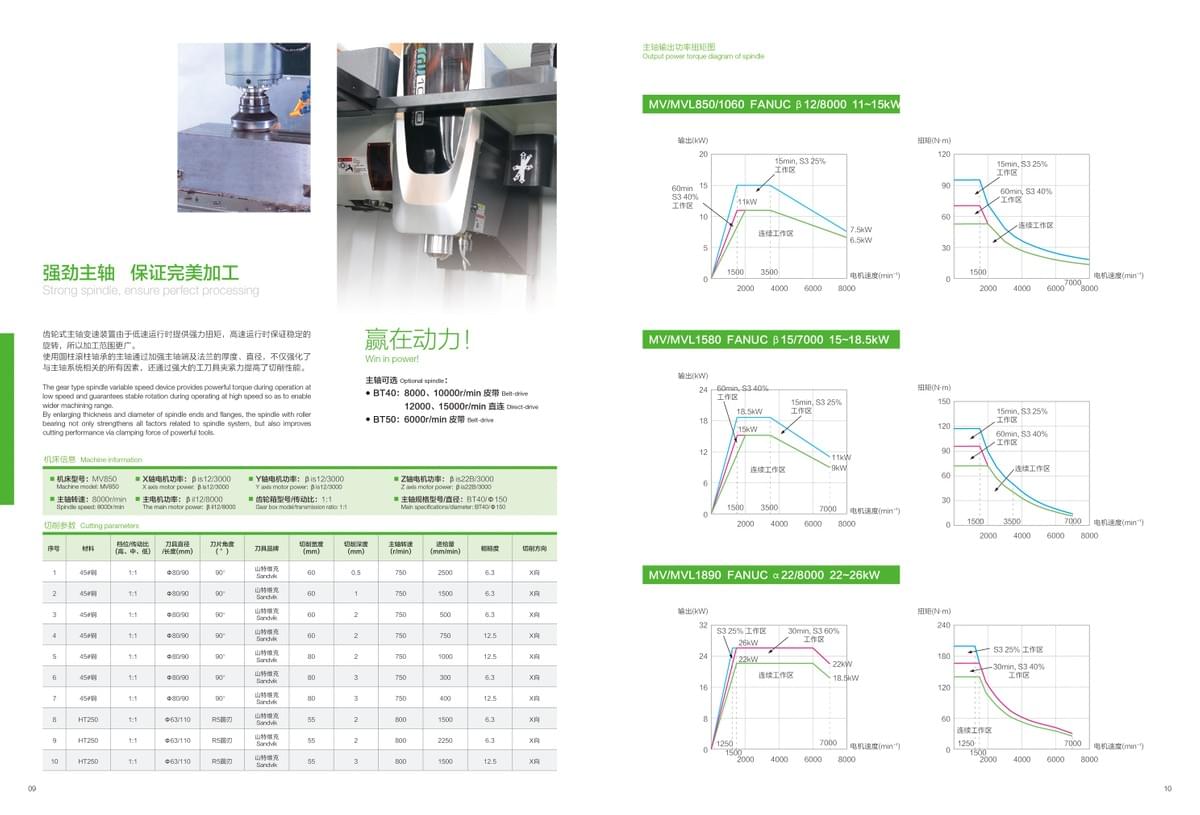

Strong spindle, ensure perfect processing:
The gear type spindle variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range.
By enlarging thickness and diameter of spindle ends and flanges, the large specifications bearing not only strengthens all factors related to spindle system, but also improves cutting performance via clamping force of powerful tools.
Strong spindle, ensure perfect processing
The gear type spindle variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range.By enlarging thickness and diameter of spindle ends and flanges, the spindle with roller bearing not only strengthens all factors related to spindle system, but also improves cutting performance via clamping force of powerful tools.
Win in power
Optional spindle:
BT40:8000/10000r/min Belt-drive 12000/15000r/min Direct-drive
BT50:6000r/min Belt-drive
