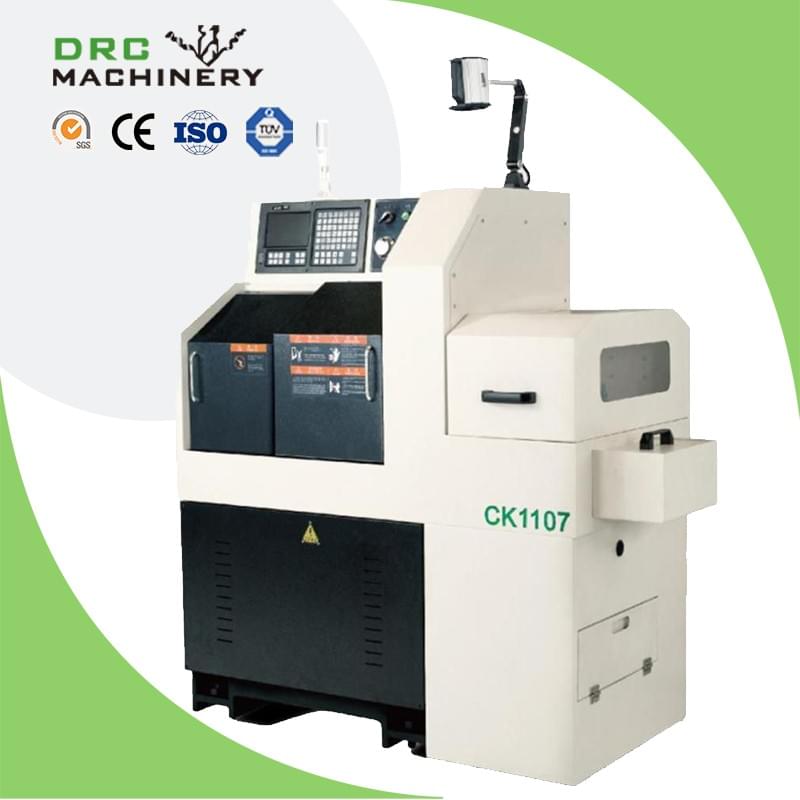

CK1107 High-Precision CNC Swiss Lathe: Core Product of Dalian R&C Machinery, Preferred for Slender Part Processing

In the field of precision machining, especially for the processing of ultra-slender shafts and high-coaxiality parts, CNC Swiss lathes have become indispensable equipment in the industry due to their high efficiency and precision. As a top 30 enterprise in China's CNC machine tool industry, Dalian R&C Machinery has launched the CK1107 CNC Swiss Lathe, which integrates advanced technology and mature manufacturing experience. It provides high-quality slender part processing solutions for customers in more than 60 countries and regions around the world, and has become a trusted choice in industries such as mold making, energy, and aerospace.

I. Core Advantages of CK1107 CNC Swiss Lathe: Precisely Adapting to Ultra-Slender Part Processing Needs

1. Innovative Structural Design, Balancing Efficiency and Rigidity

The CK1107 CNC Swiss Lathe adopts a left and right gang tool structure, equipped with 12 tools (including 8 turning tools and 4 front drilling tools). It features fast tool change speed and strong rigidity, significantly shortening the processing cycle. With a compact layout, the machine size is only 1415×700×1680mm, occupying a small footprint and can be flexibly adapted to various production workshops. Especially equipped with a fixed guide bush design, it can stably process slender shafts with a length of ≤150mm, ensuring the coaxiality and surface finish of the workpiece. It perfectly meets the turning needs of workpieces with a large diameter ratio, and is a benchmark product among slender shaft processing equipment.

2. High-Precision Configuration, Ensuring Processing Stability

All three axes of the machine adopt Taiwan HIWIN/PMI linear rolling guides, driven by Huichuan absolute value servo motors. The X-axis pulse equivalent is 0.0005mm, the Y and Z-axis pulse equivalents are 0.001mm, and the minimum setting value is only 0.001mm. The cutting speed ranges from 1-4000mm/min, and the rapid feed rate is as high as 15000mm/min. Equipped with the domestic YZ150 CNC system, it has complete functions and is easy to operate. Combined with a 2-7mm automatic bar feeder, it can realize fully automatic production control, effectively improving production efficiency and product consistency.

3. Diversified Adaptability, Covering Multi-Industry Needs

The CK1107 CNC Swiss Lathe has a maximum spindle bar diameter of 7mm, a spindle hole diameter of 8mm, and a speed range of 0-5000r/min, which can process various ultra-slender precision parts. The machine supports M6 specification tapping, is equipped with an ER8/12mm drill shaft, has a cooling system capacity of 80L and a lubrication system capacity of 1.5L. It can meet the processing needs of multiple scenarios such as mold accessories, aerospace components, and electronic components, showing strong versatility and adaptability.

II. Dalian R&C Machinery: Strength Forges Quality, Service Guarantees Productio

1. Strong Manufacturing Strength, Laying the Foundation for Quality

Dalian R&C Machinery has a 280,000-square-meter modern factory, equipped with high-end processing equipment such as Japan's OKUMA five-axis machining center, Mitsubishi five-axis machining center, Germany's TRUMPF laser cutting machine, and KUKA welding robots. Its precision castings are supplied to the world-renowned enterprise DMG, with prominent industrial chain advantages. With more than 20,000 sets of machine tool manufacturing experience, it has passed ISO9001 Quality Management System and ISO14001 Environmental Management System certifications, and has accumulated 29 invention patents, 108 utility model patents, and 49 appearance design patents, leading the industry in technical strength.

2. Full-Cycle Service Guarantee, Worry-Free Procurement Experience

The CK1107 CNC Swiss Lathe is machine enjoys a 1-year free warranty, and provides an English operation manual, maintenance tool kit and free operation training. Spare parts are supplied for life, and professional maintenance engineers respond quickly to minimize downtime losses.

3. Global Market Recognition, Rich Cooperation Cases

Dalian R&C Machinery's products are exported to more than 60 countries and regions such as Russia, Dubai, Italy, and Argentina, and have established long-term cooperative relationships with world-renowned enterprises such as DMG MORI, FOXCONN, SIEMENS, and TOSHIBA MACHINE. Customer feedback shows that the CK1107 CNC Swiss Lathe and series products have passed strict inspections, and their processing precision and stability have been highly recognized, becoming core equipment for many enterprises to expand production capacity and improve product quality.

III. Choose CK1107 to Unlock a New Height of Precision Machining

the CK1107, with its core advantages of innovative structure, excellent precision and strong adaptability, as well as Dalian R&C Machinery's manufacturing strength and full-cycle service guarantee, has become an ideal choice for ultra-slender part processing. Whether it is the processing of precision accessories in the mold industry or the production of high-demand components in the aerospace field, the CK1107 can help enterprises reduce costs and increase efficiency with its efficient and stable performance.

Dalian R&C Machinery continues to deepen the field of CNC machine tools and provides one-stop precision machining solutions for global customers. If you are looking for cost-effective CNC Swiss lathes and slender shaft processing equipment, you may choose the CK1107 CNC Swiss Lathe, and work with the industry leader to create new value in precision manufacturing.
