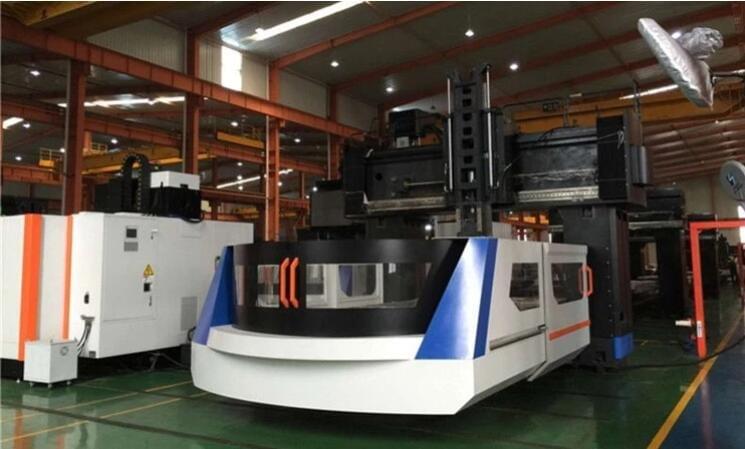

5M Gantry Machining Center enter into Franch Market
5M Gantry Machining Center enter into Franch Market, Intelligent production by our Guosheng Group.
European territory, another one more country!
High Precision Heavy Duty Gantry Machining Center 5 Axis
Widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.5 Axis Metal Milling Machine
CNC Fixed Beam Gantry Frame-type Machining Center
The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

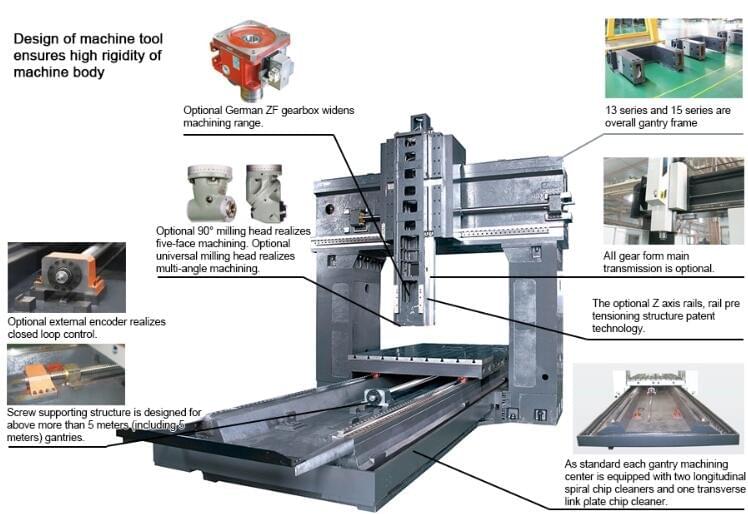

bridge type heavy cutting gantry machining centre

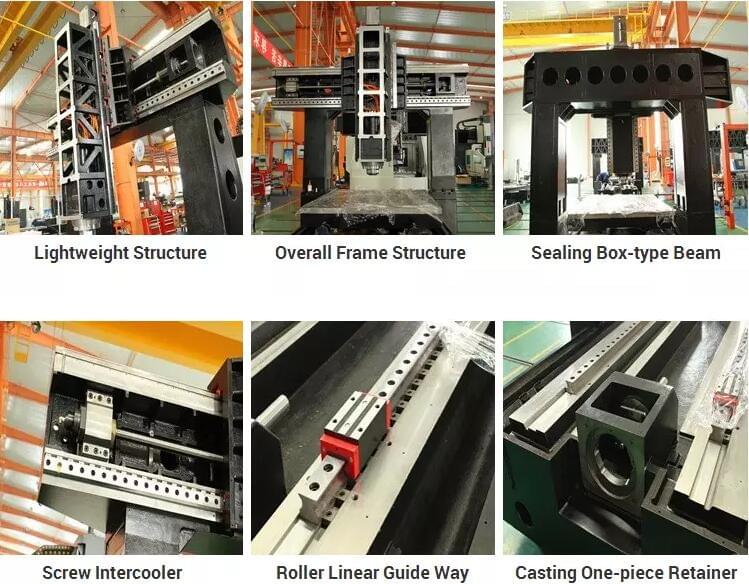

1. High rigidity and long-term precision retention:
1.1, the main large parts of the machine: base, workbench, column, beam, slide, ram are made of high-quality resin sand, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and arrange enough reinforcement The plate ensures sufficient strength, rigidity and high stability of the machine.
1.2, XY axis uses heavy-duty roller guide rail, strong rigidity and good dynamic precision.
1.3. Three-axis transmission adopts Taiwan brand large-diameter grinding double nut ball screw, which has compact structure, stable movement and high precision. The screw support uses precision screw support bearings, and the two ends are pre-stretched to eliminate the precision loss caused by thermal elongation. .
1.4. The beam adopts a stepped structure. The cross section of the beam is large, the span of the guide rail is large, the distance from the center of the main shaft to the surface of the guide rail is short, the turning torque is small, and the structural rigidity is good.
1.5. The high-rigid Taiwan brand gantry-specific spindle, which is lubricated with grease, can make the spindle bearing have constant and reliable lubrication, which is economical and environmentally friendly and achieves long-term maintenance-free.
2, high precision, high dynamic response characteristics:
2.1. The spindle adopts high-precision angular contact ball bearing to achieve high rigidity and high spindle rotation accuracy.
2.2, XY axis roller guide, high precision and large load. The friction is low, the low-speed crawling phenomenon of the machine tool is reduced, the positioning accuracy is good, and high dynamic response characteristics are obtained at the same time.
2.3, Z-axis adopts double hydraulic balance cylinder structure, simple structure and convenient maintenance.
3, high efficiency: spindle speed can reach 5000rpm, three-axis fast moving up to 12/15/10m/min.
4. Large processing range: Compared with the same specification machine tool, the 3.2m door width of the machine tool ensures a wider processing range.
