2021 new model recommendation-three-side milling gantry machining center

For the production line of marine engine block

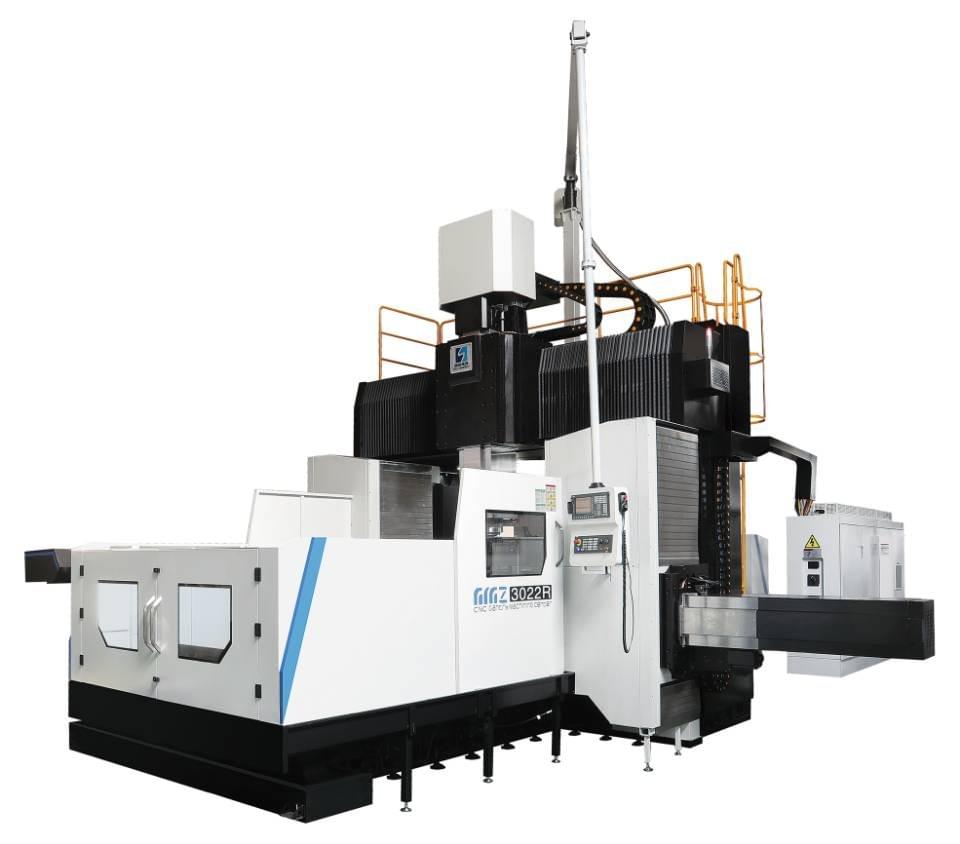

GMZ3022R Three-side Milling Gantry Machining Center

1. The fixed beam and fixed column gantry frame structure has seven linear axes, namely X, Y, Z1, Ⅵ, W2, Z2, and z3; three main axes, respectively: S1, S2, S3.
2. K-axis 55# roller guide, with large carrying capacity, Y and W axis are rectangular guides, Z axis is square ram, with strong cutting rigidity.
3. The main shaft is directly driven by a motor and a gear box, and the output torque is 2800nmS6:3824mm.
4. The three spindles can be processed individually or in collaboration to meet the high-efficiency processing requirements of different workpieces.

broken image

Product model: GMZ3022R
Worktable size: 3000x1800mm
Door width: 2800mm
Workbench bearing 12T
X/YZ axis travel: 3200/1700/700mm
W1/W2 axis travel: 1250mm
Z1/Z2 axis travel: 700mm
Distance from spindle end to worktable: 1120-1820mm
Nose end opening size of horizontal head spindle: 700-2100mm
The distance from the center of the two horizontal head spindles to the worktable: 250-1500mm
Speed range: 10-500rpm
